Yooj Yim Taw Qhia:

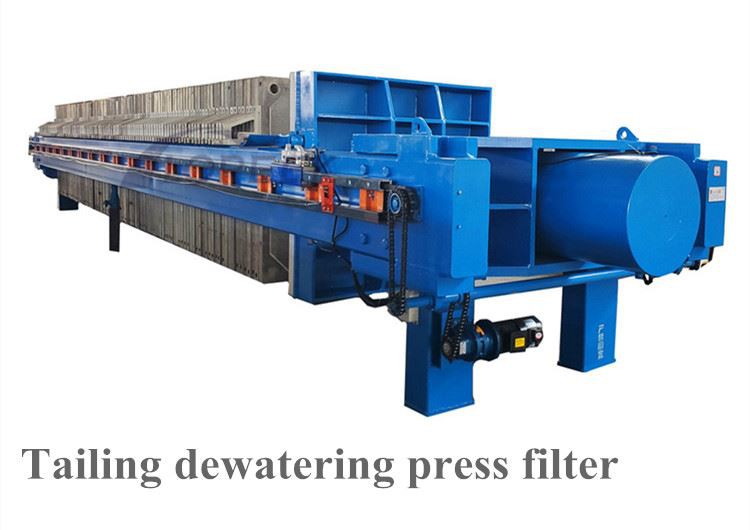

Tailing Dewatering Press Filter feem ntau yog siv los kho cov sludge thiab av nkos uas tsim los ntawm tailings, tshem tawm dej, thiab lim cov sludge rau hauv av nkos ncuav mog qab zib nrog dej tsawg. Peb tailing dewatering lim xovxwm yog ib yam khoom siv dewatering tsim los ntawm kev zom thiab nqus cov tshuab txawv teb chaws. Nws muaj cov yam ntxwv ntawm kev kho mob loj, kev ua kom lub cev qhuav dej thiab lub neej ua haujlwm ntev. Raws li cov cuab yeej txhawb nqa rau kev kho cov dej phwj tuaj, nws tuaj yeem lim thiab dehydrate cov khib nyiab thiab cov khib nyiab tom qab kev kho cua flotation, thiab nias rau hauv av nkos ncuav mog qab zib, kom tsis txhob muaj kuab paug ntawm cov dej hauv av thiab av los ntawm tailings leaching tov.

Peb Tailing Dewatering Press Lim yog tsuas yog siv los kho cov sludge thiab av nkos uas tsim los ntawm tailings, tshem tawm dej, thiab lim cov sludge rau hauv av nkos ncuav mog qab zib uas tsis muaj noo noo. Nws yog siv rau hauv nroog sludge, tailings, cawv khib nyiab kua, coal slime ntawm thee ntxuav cog, sludge ntawm daim ntawv zeb, thiab lwm yam. Nws muaj qhov zoo ntawm kev kub siab, me me hauv pem teb, kev siv zog tsawg thiab kev ua haujlwm yooj yim.

introduction

Peb qhov zoo ntawm tag nrho tsis siv neeg lim xovxwm:

Kev paub ntau lawm	20 Xyoo
Kev Ua Lag Luam Kev Lag Luam Thoob Ntiaj Teb	Txij xyoo 2012
Ntau lawm Scale	5000 units / Xyoo
Kev ua lag luam txawv teb chaws	Tebchaws USA, UK, Russia, Chile, Mexico, Thaib, Ltalis, Indonesia thiab lwm yam.30 lub tebchaws thiab cheeb tsam
Daim ntawv pov thawj ntsig txog thiab Kev Tsim Nyog	BV, ISO, CE
Lub sijhawm ua haujlwm	Hauv 10 hnub
Kev pab txhawb nqa	Kev pab cuam lub neej ntev thiab cov khoom seem
Kev pabcuam customized	Txhawb nqa

Daim ntawv thov ntawm peb tailing dewatering xovxwm lim

Pharmaceutical, chemical, standard parts, metallurgy, non-standard screws, dyes, food, brewing, ceramics, oil refining, waterwater treatment and other environmental protection industries.

application

Technical Parameters:

Qauv	Lim cheeb tsam (m2)	Phaj loj (mm)	ncuav mog qab zib thickness (mm)	Lim chamber ntim (L)	Phaj NO. (pcs)	Lim siab (Mpa)	Lub cev muaj zog (kw)	Wight (kg)
XMZ30/870-30U	30	870 * 870 lossis 800*800	30	460	23	≥0.6	2.2	2680
XMZ40/870-30U	40			595	30			3050
XMZ50/870-30U	50			748	38			3456
XMZ60/870-30U	60			902	46			4003
XMZ70/870-30U	70			1056	54			4584
XMZ80/870-30U	80			1210	62			5082
XMZ50/1000-30U	50	1000*1000		736	28	≥0.6	4.0	4128
XMZ60/1000-30U	60			889	34			4636
XMZ70/1000-30U	70			1041	40			5143
XMZ80/1000-30U	80			1193	46			5651
XMZ100/1000-30U	100			1475	57			6628

Qee qhov xwm txheej:

Peb muaj ntau qhov project thoob ntiaj teb.

FACTORY

certificate Partner

Q1: Koj puas yog lub chaw tsim khoom lim lim?

A1: Yog lawm, Peb yog cov chaw tsim khoom ntawm cov khoom sib cais, txais tos tuaj xyuas peb.

Q2: Yam khoom koj muab?

A2: siab nplooj lim, tswm ciab lim, nias lim, vibrating separator. Khoom-kua separators thiab lwm yam.

Q3: Yuav ua li cas xaiv hom koj xav tau?

A3: Thaum koj tiv tauj peb, peb yuav nug qee cov lus nug yooj yim los pab koj xaiv cov khoom lag luam xws li, kev siv dab tsi rau cov cuab yeej koj xav yuav, dej ntws, tus nqi ntws ib teev, thaj chaw pom, ua haujlwm kub [ GG] amp; siab, etc.

Q4: Lub sijhawm khoom xa tuaj yog dab tsi?

A4: Cov khoom siv txheem tsuas yog xav tau ib lub lim tiam; Rau kev txiav txim loj, 10-15 hnub yuav zoo.

Q5: MOQ yog dab tsi?

A5: Peb MOQ yog ib qho t.

Q6: Koj puas txais OEM?

Yog lawm, peb tuaj yeem muab cov kev pabcuam OEM raws li koj qhov kev xav tau rau cov khoom.

Q7: Koj lub sijhawm them nyiaj txais tau yog dab tsi?

A7: Feem ntau los ntawm T / T, 20% -50% tso nyiaj them nyiaj ib zaug PI / Daim ntawv cog lus lees paub, ces qhov seem tshuav yuav raug them tom qab kuaj xyuas thiab ua ntej xa khoom ntawm T / T ; L / C thiab lwm yam.

Q8: Koj puas txhawb nqa ntawm qhov chaw teeb tsa& kev ua haujlwm?

A8: Yog lawm, peb muaj cov kws tshaj lij tuaj yeem coj koj ua tiav txoj haujlwm no.

Cim npe nrov: tailing dewatering xovxwm lim, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev muag khoom

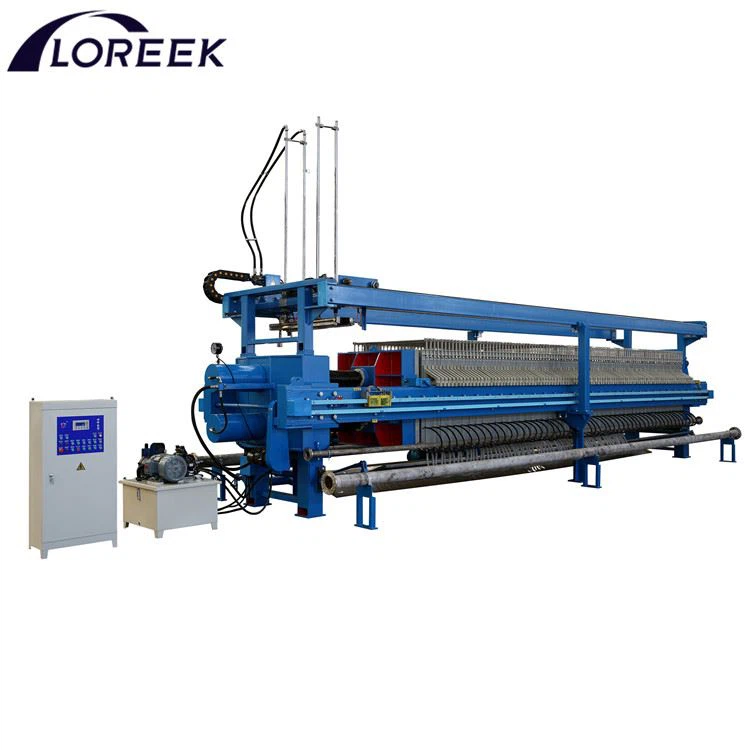

Tailing Dewatering Xovxwm Lim
